- Model：HM1000A
- Product：HITACHI Thermal Desorption Ionizer MS(TDMS)
♦ High-speed measurement
♦ Fast, easy, on-site screening of phthalates
♦ Simplified measurement
♦ Low running costs
♦ Fast, easy, on-site screening of phthalates
♦ Simplified measurement
♦ Low running costs
High-speed measurement
- Conventional testing methods (GC/MS) are problematic in that they rely on component extraction using organic solvent and are therefore time consuming and require specialist expertise since they involve complex equipment using large volumes of solvent.
- HM1000 enables each sample to be screened for phthalates in under 10 minutes.

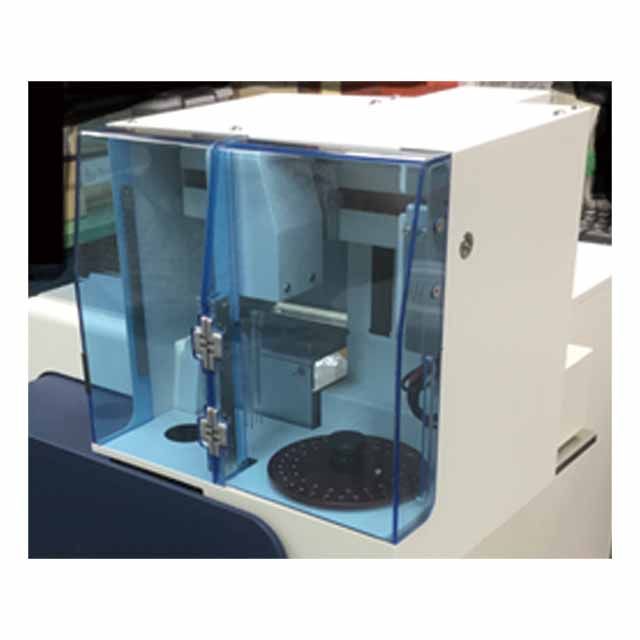

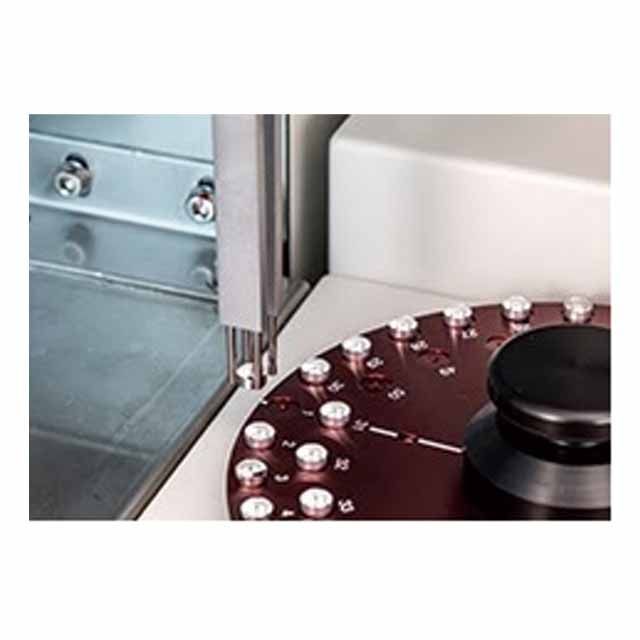

Auto-sampler
The auto-sampler allows for continuous automated analysis of 50 samples in 8 hours.

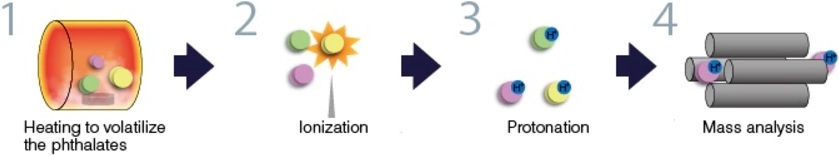

Principle
Vaporized compounds are ionized and directly analyzed by a mass spectrometer enabling high-speed measurement.

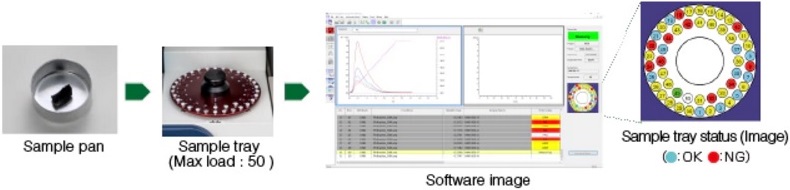

Easy operation from sample preparation to analysis
Place the sample in the sample pan and position it on the sample tray. Next, by following simple software steps, measurements will be started by the auto-sampler. The auto-sampler diagram is displayed on the software and the progress of measurements and the results (OK/NG judgment) can be verified easily.
| Item | Specification | |
|---|---|---|
| Origin | Japan | |
| General Specifications | Measuring object | Phthalate esters (DBP/DIBP, BBP, DEHP) Brominated flame retardants (DBDE) |
| Sample weight | 0.2 mg ± 0.04 mg | |
| Sample type | Solid, Powder | |
| Auto-sampler | Max.50 samples | |
| Mass detection | Ion source | APCI |
| Mass spectrometer | Quadruple mass filter | |
| Measurement mode | Scan mode SIM (Selected Ion Monitoring) mode (Max. 20 channels) |
|
| Ion polarity | Positive ion | |
| Dimensions and weight | Main body | 510(W)×615(D)×615(H) mm, 85kg |
| Rotary pump | 160(W)×490(D)×265(H) mm, 29kg | |
| Electric specifications | Input supply voltage | AC200 V to 240V±10% single phase |
