- Model：EA1000AIII
- Product：X-ray Fluorescence Analyzer
♦ Basic model for RoHS application
♦ Material ID Function
♦ Hazardous Substance Measurement Software Ver.2
Low Cost Entry Model
Newly employed silicon semiconductor detector, speed-up of electric control system and mechanical drive system have shortened measurement time three times faster than the conventional model (SEA1000AII) while price remains about the same.
Material ID Function
The EA1000III rapidly identifies materials of different types of samples as soon as the measurement starts. Previously, an analytical recipe had to be selected first, but now there is no need to select an analytical recipe; the instrument can automatically identify a material.
Improved operability - Operation Panel
The user can monitor the measurement status via the progress bar on the Operation Panel as well as the sound indicators.

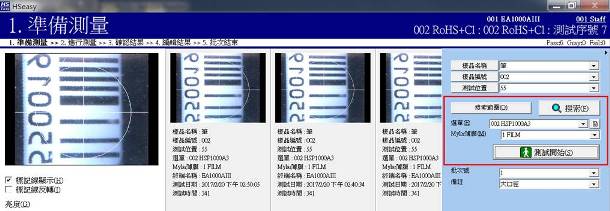

New Version of Hazardous Substance Measurement Software with a Variety of New Functions
Software manages the data (retrieval, browsing, analysis, editing, printing, and report preparation) measured by one or more instrument, allowing higher inspection efficiency and cost reduction.

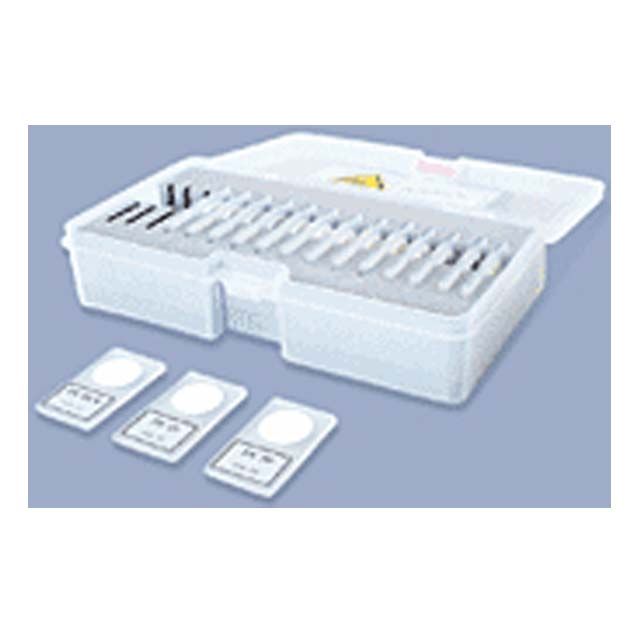

Standard reference materials for various environmental regulations (optional)
A variety of standard reference samples developed and manufactured in-house are available; those include not only for the RoHS restricted elements (Cd, Pb, Hg, Br, and Cr), but also for other elements such as chlorine (Cl), antimony (Sb) and tin (Sn) and so forth.
| Item | Specification |
|---|---|
| Origin | Japan |
| Elements | Al13 to U92 |
| Sample type | Solid, Powder, Liquid |
| X-ray source | X-ray tube (Rh target) Voltage: 15 kV, 40 kV, 50 kV Current: 1 mA (10 μA to 1,000 μA variable) |
| X-ray irradiation direction | Bottom-Up method |
| Detector | Si semiconductor detector (Liquid nitrogen not required) |
| Analysis Area | 1 mm, 3 mm, 5 mm (automatic switching) |
| Sample imaging | Color CCD camera |
| Filters | 5 mode automatic switching (including OFF) |

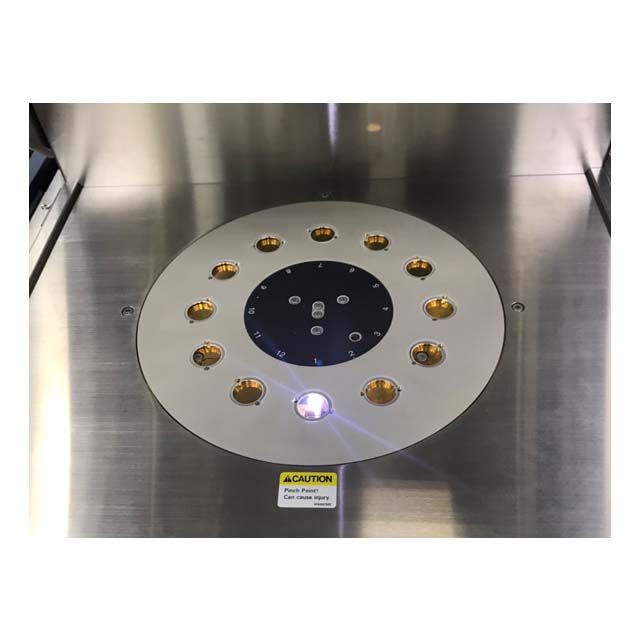

| Sample chamber | 370(W)×320(D)×120(H) mm |
| Size | 520(W)×600(D)×445(H) mm |
| Weight | 60Kg |
| Software | X-ray Station ♦ Qualitative Analysis ♦ Quantitative Analysis (Bulk FP, Bulk Calibration) ♦ Routine Measure Environmentally regulated substance measurement software Ver. 2 |
| Power usage | AC100～240V (50～60Hz) / 180VA |
