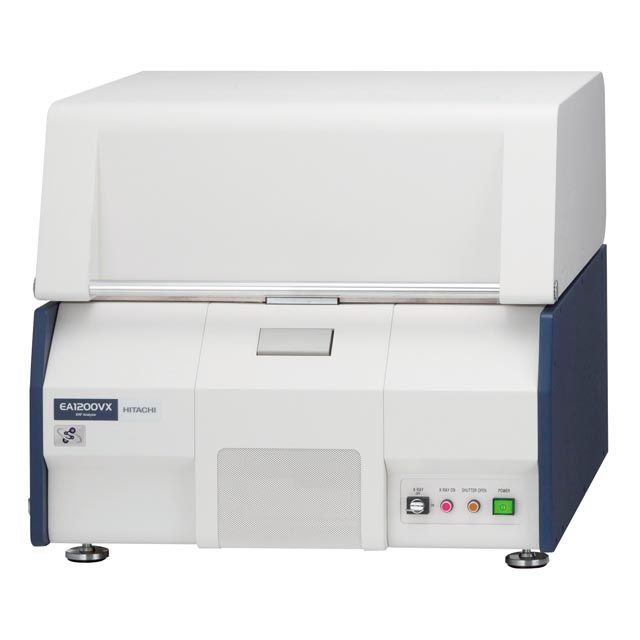

- 型號：EA1200VX
- 品名：X-ray Fluorescence Analyzer
♦ High-Sensitivity Element Monitor
♦ High Count Rate Detector (Vortex®)
♦ Vacuum system optional

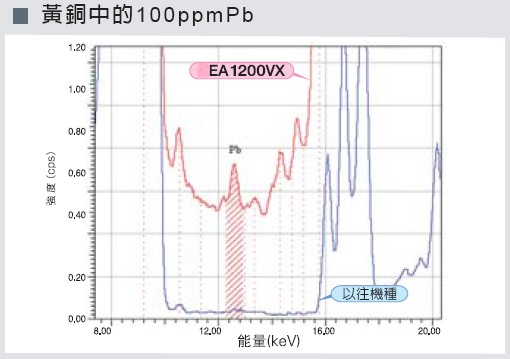

Phenomenal High Speed Analysis (High Sensitivity)
Measurement times can be greatly shortened, typically to one tenth the time of conventional methods, by combining the high count rate detector and precision control software.

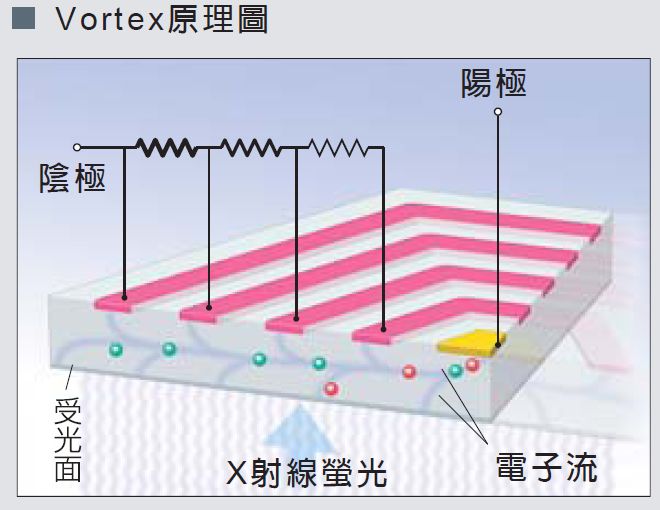

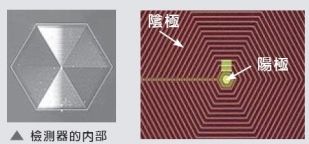

High Count Rate Detector (Vortex®)
The EA1200VX is equipped with the high count rate Vortex detector.
Time-Saving Uni Filter (optional)
Up to five RoHS restricted elements can be measured at one time using a single composite filter, achieving even shorter measuring times from the already rapid measuring time of the EA1200VX.
Wide Range of Application
Measurement of Na to U element is possible by performing measurements in a vacuum condition (with the Light Element Option). This feature also supports highly sensitive analysis of Cl.
Standard reference materials for various environmental regulations (optional)
A variety of standard reference samples developed and manufactured in-house are available; those include not only for the RoHS restricted elements (Cd, Pb, Hg, Br, and Cr), but also for other elements such as chlorine (Cl), antimony (Sb) and tin (Sn) and so forth.
| Item | Specification |
|---|---|
| Origin | Japan |
| Elements | Na11 to U92 (when using vacuum option) |
| Sample type | Solid, Powder, Liquid |
| X-ray source | X-ray tube (Rh or W target) Voltage: 15 kV, 30 kV, 40 kV, 50 kV Current: 1 mA (10 μA to 1,000 μA variable) |
| X-ray irradiation direction | Bottom-up Irradiation |
| Detector | Vortex® (SDD) (Liquid nitrogen not required) |
| Analysis Area | 1 mm, 8 mm (automatic switching) |
| Sample imaging | Color CCD camera |
| Filters | 5 mode automatic switching (including OFF) |

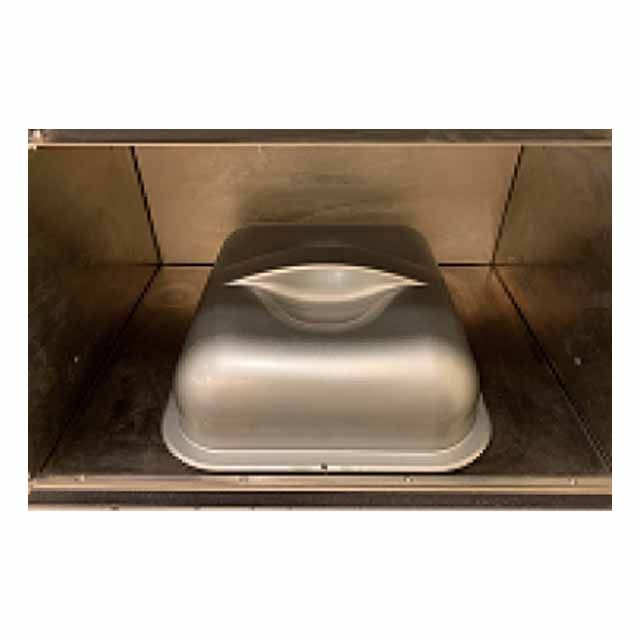

| Sample chamber | 430(W)×320(D)×195(H) mm 239(W)×280(D)×66(H) mm (when using vacuum) |
| Size | 580(W)×650(D)×513(H) mm |
| Weight | 95Kg |
| Software | X-ray Station
|
| Power usage | AC100V～240V (50/60Hz) / 210VA |
